Chipset	AMD X870E
CPU	Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
Memory	4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support DDR5 8400 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking frequency: \n• 1DPC 1R Max speed up to 8400+ MT/s \n• 1DPC 2R Max speed up to 6400+ MT/s \n• 2DPC 1R Max speed up to 6400+ MT/s \n• 2DPC 2R Max speed up to 4800+ MT/s Supports AMD POR Speed and JEDEC Speed \nSupports Memory Overclocking and AMD EXPO^TM \nSupports Dual-Channel mode \nSupports Non-ECC, Un-buffered memory \nSupports CUDIMM, Clock Driver bypass mode only* \n \n* CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility. \n• The DIMM slots on this motherboard have double-sided latches. \n• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.\n
Onboard Graphics	1x HDMI™ Support HDMI^TM 2.1 with FRL port, maximum resolution of 8K 60Hz* 2x Type-C DisplayPort USB4^® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K@60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.\n
Slot	3x PCI-E x16 slot (Qty) PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 5.0 supports up to x4 (From CPU) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) \nPCI_E1 & PCI_E2 slots \n• Supports PCIe 5.0 x16/x0 or x8/x4 (For Ryzen™ 9000/ 7000 Series processors) \n• Supports PCIe 4.0 x8/x0 (For Ryzen™ 8700/ 8600/ 8400 Series processors) \n• Supports PCIe 4.0 x4/x0 (For Ryzen™ 8500/ 8300 Series processor) \nPCI_E3 slot \n• Supports up to PCIe 4.0 x4 \n \n* PCI_E1 & PCI_E2 & M.2_2 share the bandwidth, and PCIe version support varies depending on the CPU. Please refer to the PCIe configuration table in the manual for more details.\n
Audio	Realtek^® ALC4080 Codec 7.1-Channel USB High-Performance Audio \nSupports up to 32-Bit/384 kHz playback on front panel \nSupports S/PDIF output
Storage	4x M.2 (Qty) M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G (Qty) \nM.2_1 slot \n• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) \n• Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) \n \nM.2_2 slot* \n• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) \n• The M2_2 slot will be unavailable when using Ryzen™ 8000 Series processors \n \n* PCI_E1 & PCI_E2 & M.2_2 share the bandwidth, and PCIe version support varies depending on the CPU. Please refer to the PCIe configuration table in the manual for more details.\n
RAID	•Supports RAID 0, RAID 1 and Raid 10 for SATA storage devices \n•Supports RAID 0, RAID 1 and Raid 10* for M.2 NVMe storage devices \nRAID 5 configuration is only supported by Ryzen™ 9000 series processors. \nRAID 10 for M.2 NVMe storage devices is only supported by Ryzen™ 9000/7000 series processors.\n
USB	4x USB 2.0 (Front) 4x USB 5Gbps Type A (Front) 9x USB 10Gbps Type A (Rear) 2x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Front) 2x USB 40Gbps Type C (Rear)
LAN	1x Realtek^® 8126 5G LAN \n1x Realtek^® 8125 2.5G LAN
Internal IO	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x PUMP_SYS Fan 5x System Fan 1x ARGB+FAN+USB2.0 Header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Thermal Sensor connectors(T_SEN) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports
WIRELESS LAN & BLUETOOTH	Wi-Fi 7 Solution The Wireless module is pre-installed in the M.2 (Key-E) slot \nSupports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps \nSupports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth^® 5.4*, MLO, 4KQAM 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2. \n** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.\n
LED FEATURE	4x EZ Debug LED \n1x EZ Digit Debug LED
BACK PANEL PORTS	\n $\"\"$ \n \n USB 10Gbps Type-A \n Flash BIOS Button \n Clear CMOS Button \n Smart Button \n 2.5G LAN \n 5G LAN \n Audio Connectors \n HDMI™ \n USB 40Gbps Type-C \n USB 10Gbps Type-C \n USB 10Gbps Type-A \n USB 10Gbps Type-C \n Wi-Fi / Bluetooth \n Optical S/PDIF Out \n \n
OPERATING SYSTEM	Support for Windows^® 11 64-bit
BOX CONTENT	$\"\"$
PCB Info	ATX 243.84mmx304.8mm

","image":["https://img.msidirect.shop/images/product/mpg-x870e-carbon-wifi-3-1.png","https://img.msidirect.shop/images/product/mpg-x870e-carbon-wifi-3-2.png","https://img.msidirect.shop/images/product/mpg-x870e-carbon-wifi-3-3.png","https://img.msidirect.shop/images/product/mpg-x870e-carbon-wifi-3-4.png","https://img.msidirect.shop/images/product/mpg-x870e-carbon-wifi-3-5.png"],"sku":"mpg-x870e-carbon-wifi-3","brand":{"@type":"Brand","name":"MSI e-Shop"},"offers":{"@type":"AggregateOffer","lowPrice":175,"highPrice":175,"priceCurrency":"USD","availability":"https://schema.org/InStock","url":"https://msidirect.shop/products/mpg-x870e-carbon-wifi-3","offerCount":1}}

Home Shop

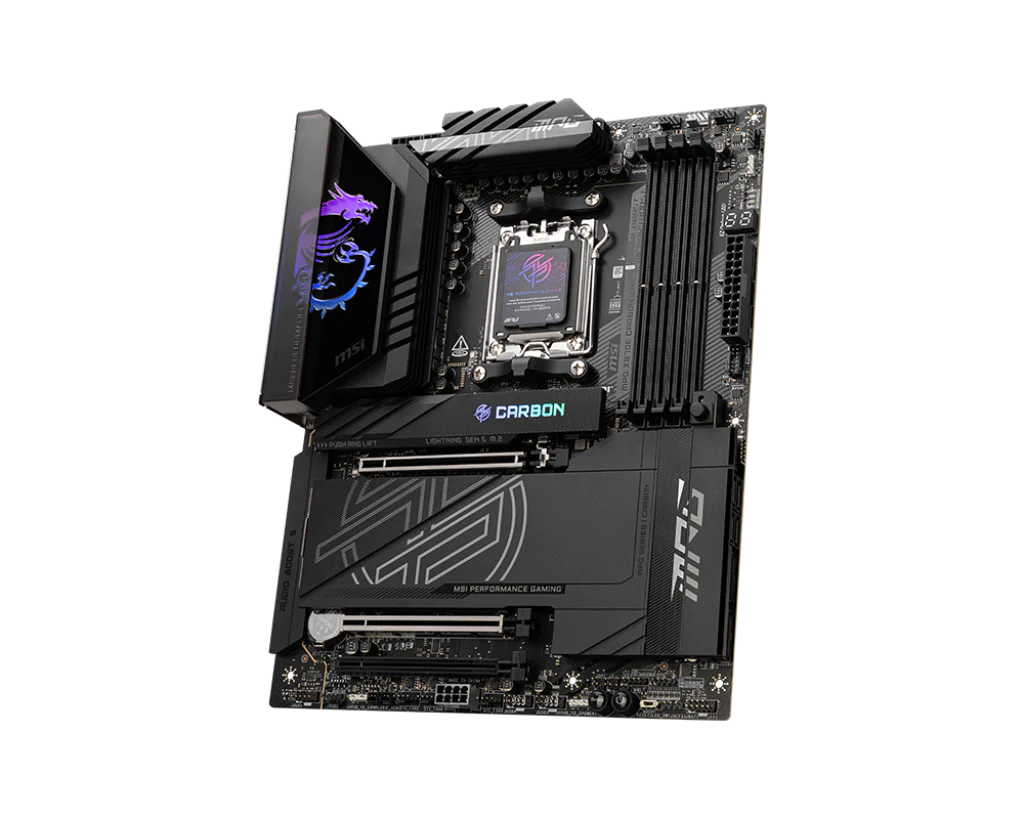

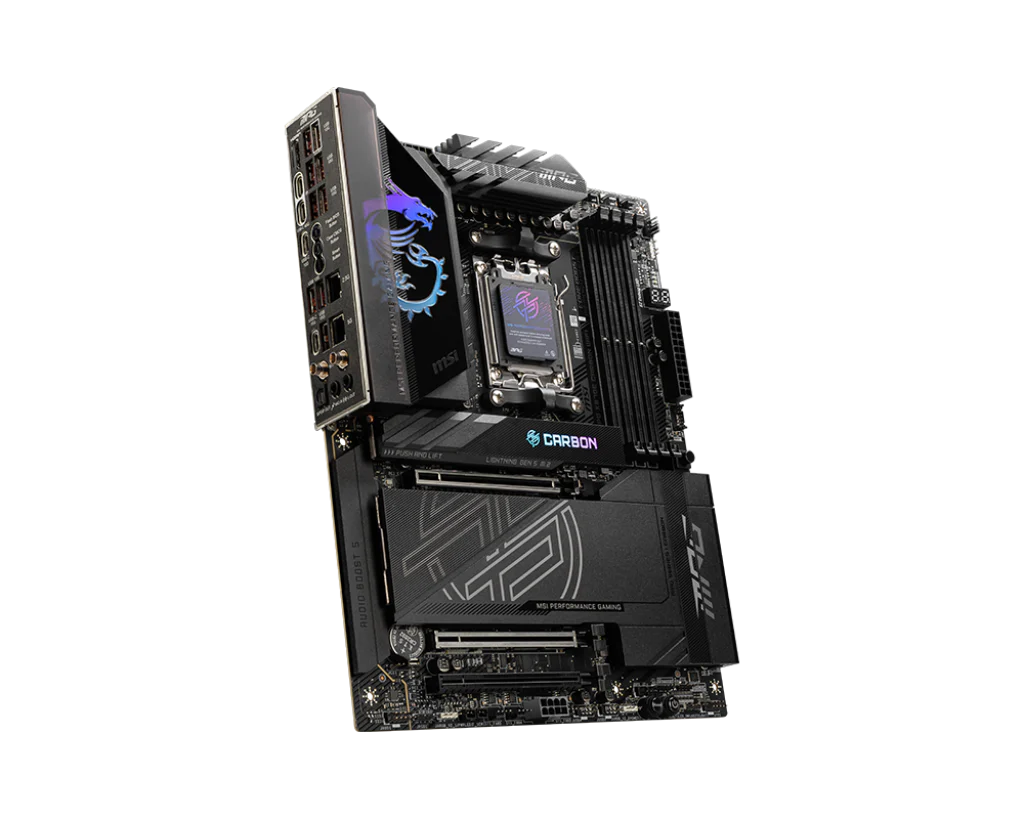

MSI Motherboard MPG X870E CARBON WiFi

MSI Motherboard MPG X870E CARBON WiFi

Unterstützt AMD Ryzen™ 9000/8000/7000-Serie Desktop-Prozessoren
Unterstützt DDR5-Speicher, Dual Channel DDR5 8400+ MT/s (OC)
Ultra Performance: 18+2+1 Duet Rail Power System, zwei 8-polige CPU-Stromanschlüsse, Core Boost, Memory Boost, 8-lagige Leiterplatte aus 2 oz dickem Kupfer und Material in Serverqualität
Frozr Guard: Vergrößerter Kühlkörper mit Heatpipe, MOSFET-Wärmeleitpads mit 7 W/mk, zusätzliche Wärmeleitpads für Drosselspulen und M.2 Shield Frozr.
EZ DIY: EZ PCIe Release, EZ M.2 Shield Frozr II, EZ M.2 Clip II und EZ Antenna
Blitzschneller Speicher: PCIe 5.0 Steckplatz, Lightning Gen 5 x4 M.2
Ultra Konnektivität: USB4 und 5G LAN + 2.5G LAN mit Wi-Fi 7.
Audio Boost 5: Klangqualität in Studioqualität für das intensivste Spielerlebnis.

Chipset	AMD X870E
CPU	Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
Memory	4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support DDR5 8400 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8400+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 4800+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPO^TM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only* * CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility. • The DIMM slots on this motherboard have double-sided latches. • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
Onboard Graphics	1x HDMI™ Support HDMI^TM 2.1 with FRL port, maximum resolution of 8K 60Hz* 2x Type-C DisplayPort USB4^® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K@60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot	3x PCI-E x16 slot (Qty) PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 5.0 supports up to x4 (From CPU) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E1 & PCI_E2 slots • Supports PCIe 5.0 x16/x0 or x8/x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8/x0 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4/x0 (For Ryzen™ 8500/ 8300 Series processor) PCI_E3 slot • Supports up to PCIe 4.0 x4 * PCI_E1 & PCI_E2 & M.2_2 share the bandwidth, and PCIe version support varies depending on the CPU. Please refer to the PCIe configuration table in the manual for more details.
Audio	Realtek^® ALC4080 Codec 7.1-Channel USB High-Performance Audio Supports up to 32-Bit/384 kHz playback on front panel Supports S/PDIF output
Storage	4x M.2 (Qty) M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G (Qty) M.2_1 slot • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) M.2_2 slot* • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • The M2_2 slot will be unavailable when using Ryzen™ 8000 Series processors * PCI_E1 & PCI_E2 & M.2_2 share the bandwidth, and PCIe version support varies depending on the CPU. Please refer to the PCIe configuration table in the manual for more details.
RAID	•Supports RAID 0, RAID 1 and Raid 10 for SATA storage devices •Supports RAID 0, RAID 1 and Raid 10* for M.2 NVMe storage devices RAID 5 configuration is only supported by Ryzen™ 9000 series processors. RAID 10 for M.2 NVMe storage devices is only supported by Ryzen™ 9000/7000 series processors.
USB	4x USB 2.0 (Front) 4x USB 5Gbps Type A (Front) 9x USB 10Gbps Type A (Rear) 2x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Front) 2x USB 40Gbps Type C (Rear)
LAN	1x Realtek^® 8126 5G LAN 1x Realtek^® 8125 2.5G LAN
Internal IO	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x PUMP_SYS Fan 5x System Fan 1x ARGB+FAN+USB2.0 Header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Thermal Sensor connectors(T_SEN) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports
WIRELESS LAN & BLUETOOTH	Wi-Fi 7 Solution The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth^® 5.4*, MLO, 4KQAM 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2. ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
LED FEATURE	4x EZ Debug LED 1x EZ Digit Debug LED

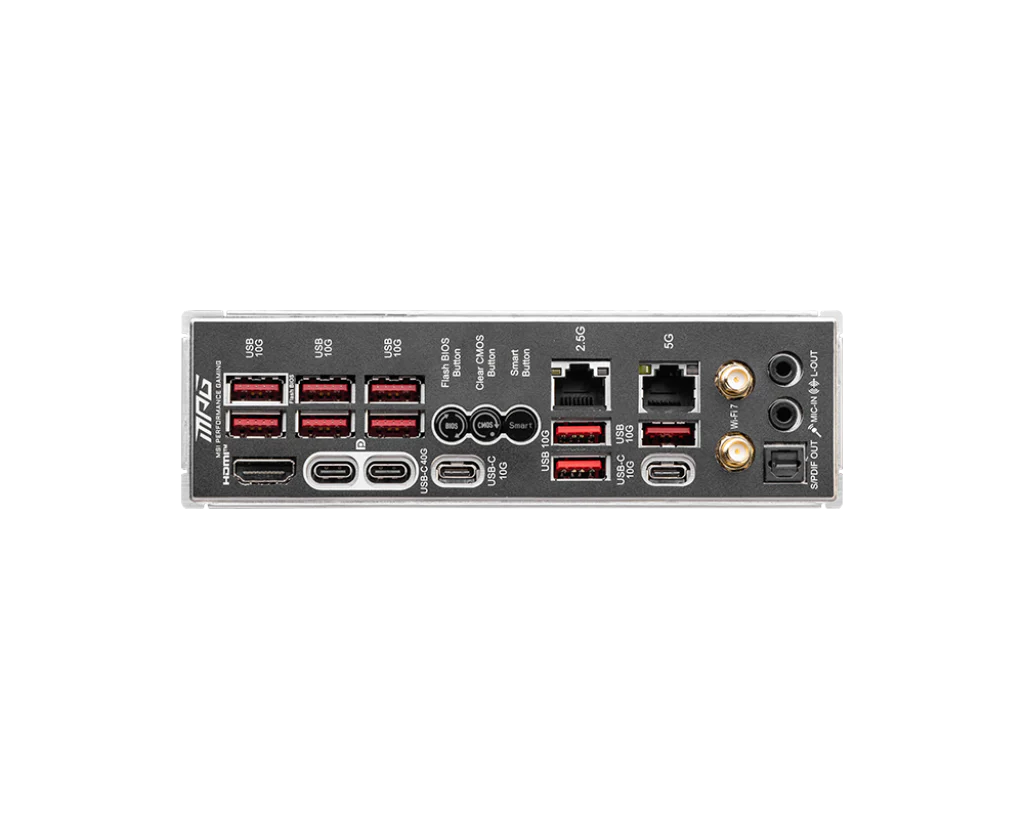

BACK PANEL PORTS	USB 10Gbps Type-A Flash BIOS Button Clear CMOS Button Smart Button 2.5G LAN 5G LAN Audio Connectors HDMI™ USB 40Gbps Type-C USB 10Gbps Type-C USB 10Gbps Type-A USB 10Gbps Type-C Wi-Fi / Bluetooth Optical S/PDIF Out
OPERATING SYSTEM	Support for Windows^® 11 64-bit
BOX CONTENT
PCB Info	ATX 243.84mmx304.8mm

$175.00

Original: $583.34

-70%

MSI Motherboard MPG X870E CARBON WiFi—

$583.34

$175.00

Original: $583.34

-70%

MSI Motherboard MPG X870E CARBON WiFi—

$583.34

$175.00

Produktinformationen

Versand & Rückgabe

Description

Unterstützt AMD Ryzen™ 9000/8000/7000-Serie Desktop-Prozessoren
Unterstützt DDR5-Speicher, Dual Channel DDR5 8400+ MT/s (OC)
Ultra Performance: 18+2+1 Duet Rail Power System, zwei 8-polige CPU-Stromanschlüsse, Core Boost, Memory Boost, 8-lagige Leiterplatte aus 2 oz dickem Kupfer und Material in Serverqualität
Frozr Guard: Vergrößerter Kühlkörper mit Heatpipe, MOSFET-Wärmeleitpads mit 7 W/mk, zusätzliche Wärmeleitpads für Drosselspulen und M.2 Shield Frozr.
EZ DIY: EZ PCIe Release, EZ M.2 Shield Frozr II, EZ M.2 Clip II und EZ Antenna
Blitzschneller Speicher: PCIe 5.0 Steckplatz, Lightning Gen 5 x4 M.2
Ultra Konnektivität: USB4 und 5G LAN + 2.5G LAN mit Wi-Fi 7.
Audio Boost 5: Klangqualität in Studioqualität für das intensivste Spielerlebnis.

Chipset	AMD X870E
CPU	Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
Memory	4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support DDR5 8400 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8400+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 4800+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPO^TM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only* * CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility. • The DIMM slots on this motherboard have double-sided latches. • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
Onboard Graphics	1x HDMI™ Support HDMI^TM 2.1 with FRL port, maximum resolution of 8K 60Hz* 2x Type-C DisplayPort USB4^® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K@60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot	3x PCI-E x16 slot (Qty) PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 5.0 supports up to x4 (From CPU) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E1 & PCI_E2 slots • Supports PCIe 5.0 x16/x0 or x8/x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8/x0 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4/x0 (For Ryzen™ 8500/ 8300 Series processor) PCI_E3 slot • Supports up to PCIe 4.0 x4 * PCI_E1 & PCI_E2 & M.2_2 share the bandwidth, and PCIe version support varies depending on the CPU. Please refer to the PCIe configuration table in the manual for more details.
Audio	Realtek^® ALC4080 Codec 7.1-Channel USB High-Performance Audio Supports up to 32-Bit/384 kHz playback on front panel Supports S/PDIF output
Storage	4x M.2 (Qty) M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G (Qty) M.2_1 slot • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) M.2_2 slot* • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • The M2_2 slot will be unavailable when using Ryzen™ 8000 Series processors * PCI_E1 & PCI_E2 & M.2_2 share the bandwidth, and PCIe version support varies depending on the CPU. Please refer to the PCIe configuration table in the manual for more details.
RAID	•Supports RAID 0, RAID 1 and Raid 10 for SATA storage devices •Supports RAID 0, RAID 1 and Raid 10* for M.2 NVMe storage devices RAID 5 configuration is only supported by Ryzen™ 9000 series processors. RAID 10 for M.2 NVMe storage devices is only supported by Ryzen™ 9000/7000 series processors.
USB	4x USB 2.0 (Front) 4x USB 5Gbps Type A (Front) 9x USB 10Gbps Type A (Rear) 2x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Front) 2x USB 40Gbps Type C (Rear)
LAN	1x Realtek^® 8126 5G LAN 1x Realtek^® 8125 2.5G LAN
Internal IO	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x PUMP_SYS Fan 5x System Fan 1x ARGB+FAN+USB2.0 Header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Thermal Sensor connectors(T_SEN) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports
WIRELESS LAN & BLUETOOTH	Wi-Fi 7 Solution The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth^® 5.4*, MLO, 4KQAM 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2. ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
LED FEATURE	4x EZ Debug LED 1x EZ Digit Debug LED
BACK PANEL PORTS	USB 10Gbps Type-A Flash BIOS Button Clear CMOS Button Smart Button 2.5G LAN 5G LAN Audio Connectors HDMI™ USB 40Gbps Type-C USB 10Gbps Type-C USB 10Gbps Type-A USB 10Gbps Type-C Wi-Fi / Bluetooth Optical S/PDIF Out
OPERATING SYSTEM	Support for Windows^® 11 64-bit
BOX CONTENT
PCB Info	ATX 243.84mmx304.8mm
