HomeShop

MSI Motherboard B760M GAMING PLUS WIFI

Produktbild 1
Produktbild 2
Produktbild 3
Produktbild 4
Produktbild 5

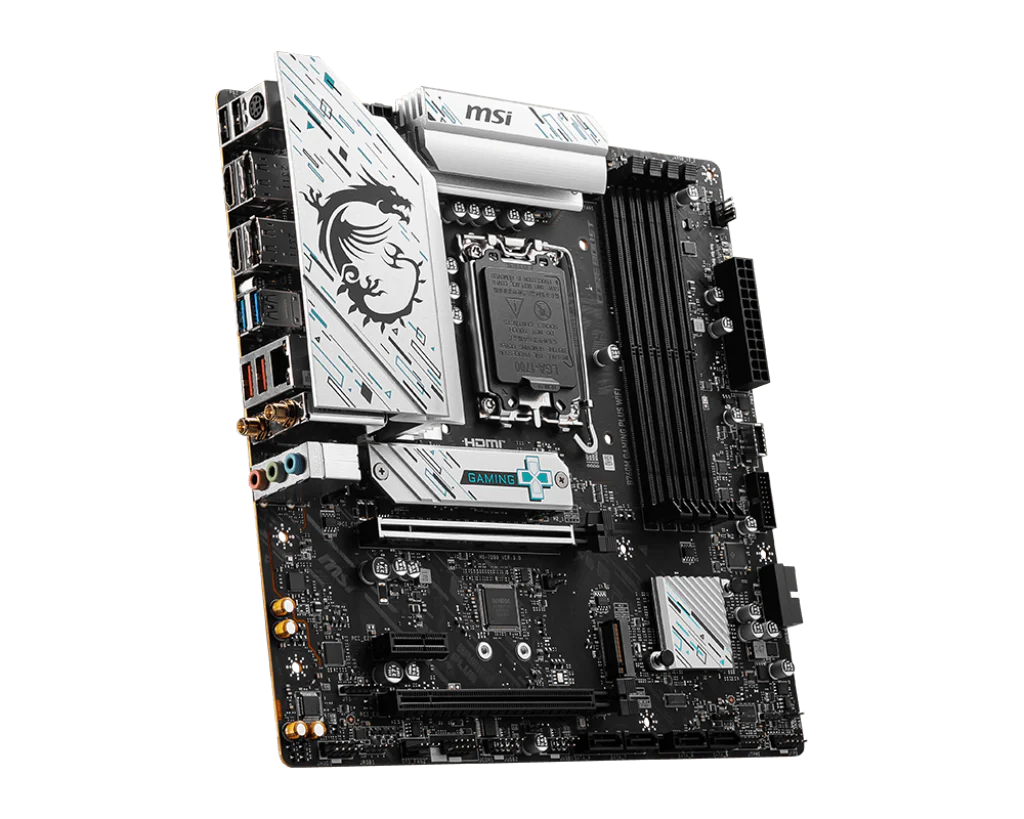

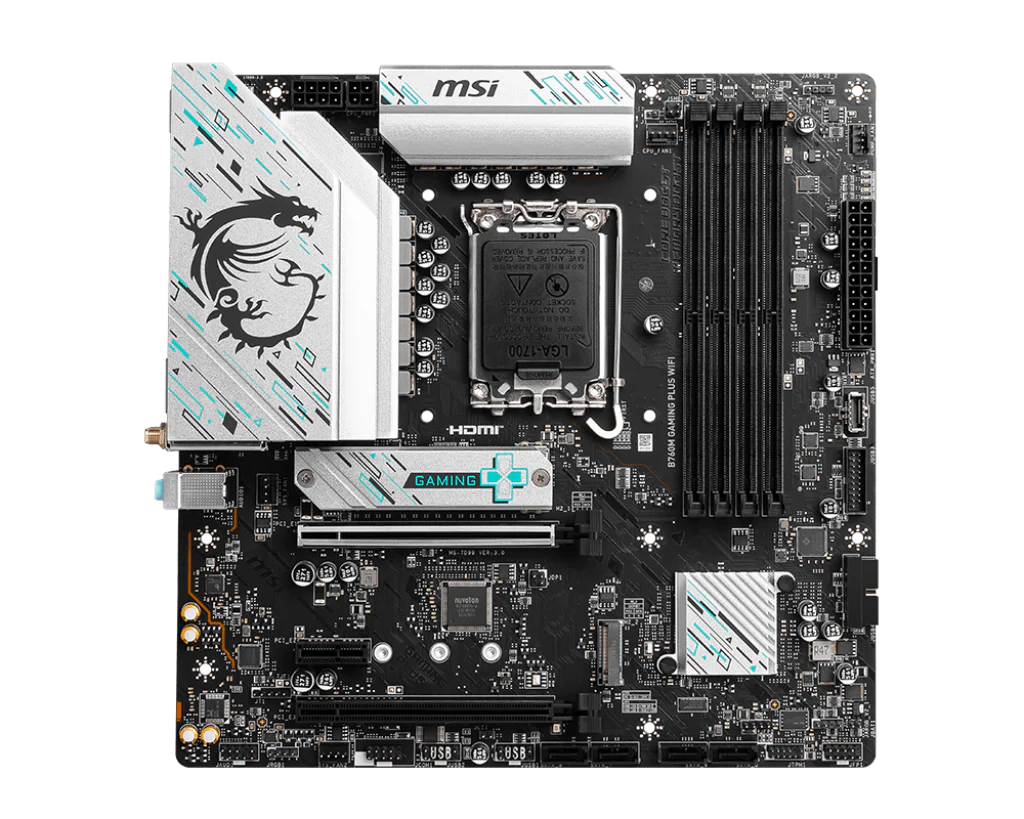

MSI Motherboard B760M GAMING PLUS WIFI

B760M GAMING PLUS WIFI

  • Unterstützt Intel® Core™ Pentium® Gold und Celeron® Porzessoren der 12., 13. und 14. Generation für LGA 1700 Sockel
  • Unterstützt DDR5-Speicher, Dual Channel DDR5 6800+MHz (OC)
  • Verbessertes Leistungsdesign: 12+1 Duet Rail Power System mit P-PAK, 8-Pin + 4-Pin CPU-Stromanschlüsse, Core Boost, Memory Boost
  • Premium Kühlung: Erweiterter Kühlkörper, MOSFET-Wärmeleitpads mit 7 W/mK und zusätzliche Drosselspulen-Wärmeleitpads
  • Blitzschnelles Gaming-Erlebnis: PCIe 4.0 Steckplatz, Lightning Gen 4 x4 M.2 mit M.2 Shield Frozr, USB 3.2 Gen 2 10G
  • 2.5G LAN mit Wi-Fi 6E: Ermöglicht eine sichere, stabile und schnelle Netzwerkverbindung.
  • Hochwertige Leiterplatte: 6-Schichten-Leiterplatte aus 2oz verdicktem Kupfer
  • Audio Boost: Hochwertige Klangqualität für ein intensives Spielerlebnis
    • Chipset INTEL B760
    CPU Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
    LGA 1700
    Memory 4x DDR5, Maximum Memory Capacity 256GB
    Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
    Max. overclocking frequency:
    • 1DPC 1R Max speed up to 6800+ MHz
    • 1DPC 2R Max speed up to 6400+ MHz
    • 2DPC 1R Max speed up to 6000+ MHz
    • 2DPC 2R Max speed up to 5600+ MHz

    Supports Intel® XMP 3.0 OC
    Supports Dual-Controller Dual-Channel mode
    Supports non-ECC, un-buffered memory
    Onboard Graphics 2x HDMI™
    Support HDMI™ 2.1, maximum resolution of 4K 60Hz*
    2x DisplayPort
    Support DP 1.4, maximum resolution of 4K 60Hz*
    *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
    Slot 2x PCI-E x16 slot (Qty)
    1x PCI-E x1 slot (Qty)
    PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
    PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
    PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
    Audio Realtek® ALC897 Codec
    7.1-Channel High Definition Audio
    Storage 2x M.2 (Qty)
    M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
    M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
    4x SATA 6G (Qty)
    * SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
    RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
    USB 2x USB 2.0 (Rear)
    4x USB 2.0 (Front)
    2x USB 5Gbps Type A (Rear)
    4x USB 5Gbps Type A (Front)
    1x USB 5Gbps Type C (Front)
    2x USB 10Gbps Type A (Rear)
    LAN Realtek® RTL8125BG 2.5G LAN
    Internal IO 1x Power Connector(ATX_PWR)
    2x Power Connector(CPU_PWR)
    1x CPU Fan
    1x Pump Fan
    2x System Fan
    2x Front Panel (JFP)
    1x Chassis Intrusion (JCI)
    1x Front Audio (JAUD)
    1x Com Port (JCOM)
    2x Addressable V2 RGB LED connector (JARGB_V2)
    1x RGB LED connector(JRGB)
    1x TPM pin header(Support TPM 2.0)
    4x USB 2.0 ports
    4x USB 5Gbps Type A ports
    1x USB 5Gbps Type C ports
    WIRELESS LAN & BLUETOOTH Intel® Wi-Fi 6E
    The Wireless module is pre-installed in the M.2 (Key-E) slot
    Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
    Supports 802.11 a/ b/ g/ n/ ac/ ax

    Supports Bluetooth® 5.3, FIPS, FISMA

    * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
    ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
    LED FEATURE 4x EZ Debug LED

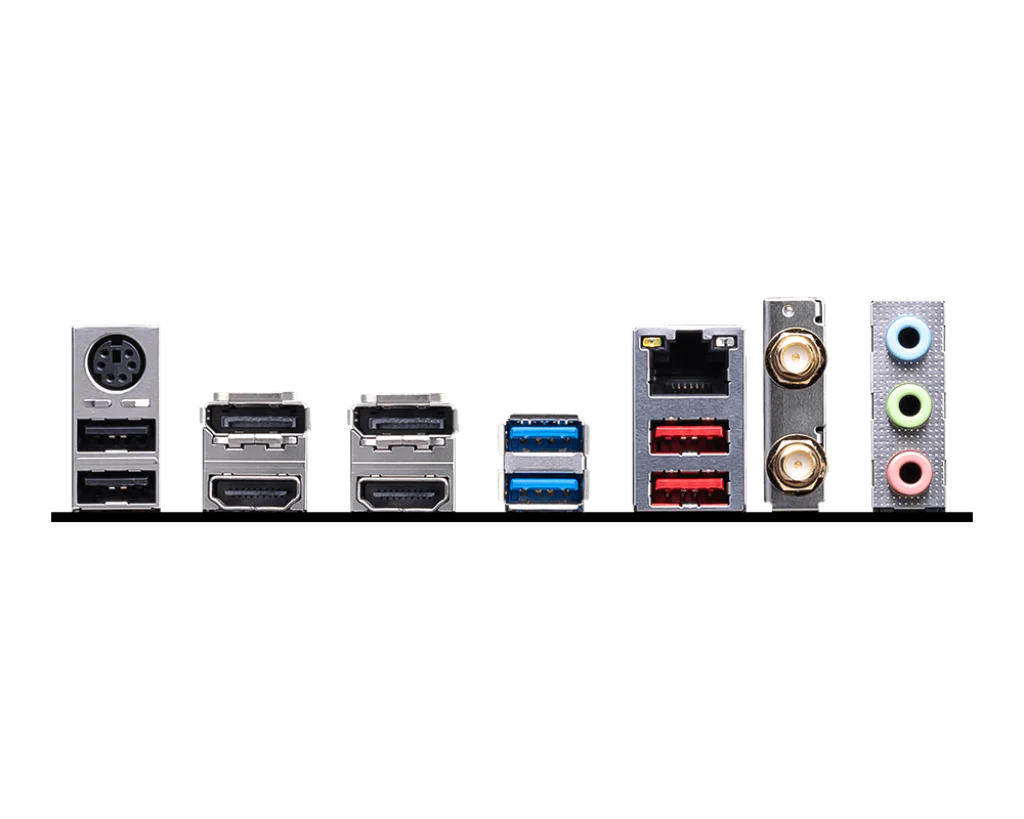

    BACK PANEL PORTS
    1. Keyboard / Mouse
    2. DisplayPort
    3. USB 3.2 Gen 1 5Gbps (Type-A)
    4. 2.5G LAN
    5. Wi-Fi / Bluetooth
    6. USB 2.0
    7. HDMI™
    8. USB 3.2 Gen 2 10Gbps (Type-A)
    9. Audio Connectors
    OPERATING SYSTEM Support for Windows® 11 64-bit, Windows® 10 64-bit
    BOX CONTENT
    PCB Info mATX
    243.84mmx243.84mm
    $52.25

    Original: $174.18

    -70%
    MSI Motherboard B760M GAMING PLUS WIFI—

    $174.18

    $52.25
