ChipsetINTEL Z790
CPUSupport Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
LGA 1700
Memory4x DDR5, Maximum Memory Capacity 192GB
Memory Support DDR5 6600+(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
\n• 1DPC 1R Max speed up to 6600+ MHz
\n• 1DPC 2R Max speed up to 6400+ MHz
\n• 2DPC 1R Max speed up to 6000+ MHz
\n• 2DPC 2R Max speed up to 5600+ MHz

Supports Intel® XMP 3.0 OC
\nSupports Dual-Controller Dual-Channel mode
\nSupports non-ECC, un-buffered memory
Onboard Graphics1x HDMI™
Support HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz*
1x DisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.\n
Slot2x PCI-E x16 slot (Qty)
3x PCI-E x1 slot (Qty)
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 3.0 supports up to x4 (From Chipset)
PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset)
Storage2x M.2 (Qty)
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G (Qty)
RAIDSupports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB2x USB 2.0 (Rear)
4x USB 2.0 (Front)
4x USB 3.2 Gen1 Type A (Rear)
4x USB 3.2 Gen1 Type A (Front)
1x USB 3.2 Gen2x2 Type C (Rear)
LANRealtek® RTL8125BG 2.5Gbps LAN
WIRELESS LAN & BLUETOOTHIntel® Wi-Fi 6E
The Wireless module is pre-installed in the M.2_WIFI1 (Key-E) slot
\nSupports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
\nSupports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth® 5.3, FIPS, FISMA

* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
\n** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.\n
AudioRealtek® ALC897 Codec
7.1-Channel High Definition Audio
\nSupports S/PDIF output
Internal IO1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
4x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x TBT connector (JTBT, supports RTD3)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
4x USB 3.2 Gen1 Type A ports

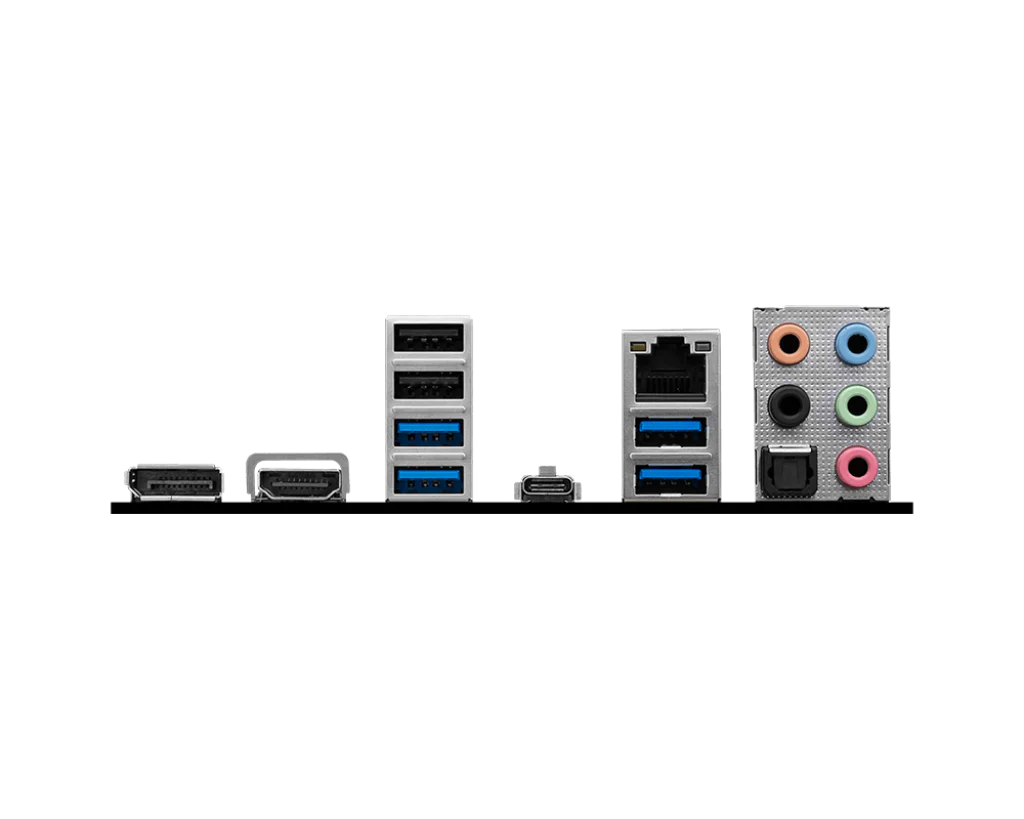

BACK PANEL PORTS\n\"\"\n
    \n
  1. DisplayPort
    2. \n
  2. HDMI™
    3. \n
  3. USB 2.0
    4. \n
  4. USB 3.2 Gen 2x2 20Gbps (Type-C)
    5. \n
  5. 2.5G LAN
    6. \n
  6. Audio Connectors
    7. \n
  7. USB 3.2 Gen 1 5Gbps (Type-A)
    8. \n
  8. USB 3.2 Gen 1 5Gbps (Type-A)
    9. \n
  9. S/PDIF-OUT
    10. \n
\n
OPERATING SYSTEMSupport for Windows® 11 64-bit, Windows® 10 64-bit
PCB InfoATX
243.84mmx304.8mm
BOX CONTENT\"\"
","image":["https://img.msidirect.shop/images/product/pro-z790-s-wifi-motherboard-1.png","https://img.msidirect.shop/images/product/pro-z790-s-wifi-motherboard-2.png","https://img.msidirect.shop/images/product/pro-z790-s-wifi-motherboard-3.png","https://img.msidirect.shop/images/product/pro-z790-s-wifi-motherboard-4.png","https://img.msidirect.shop/images/product/pro-z790-s-wifi-motherboard-5.png"],"sku":"pro-z790-s-wifi-motherboard","brand":{"@type":"Brand","name":"MSI e-Shop"},"offers":{"@type":"AggregateOffer","lowPrice":209.25,"highPrice":209.25,"priceCurrency":"USD","availability":"https://schema.org/InStock","url":"https://msidirect.shop/products/pro-z790-s-wifi-motherboard","offerCount":1}}
HomeShop

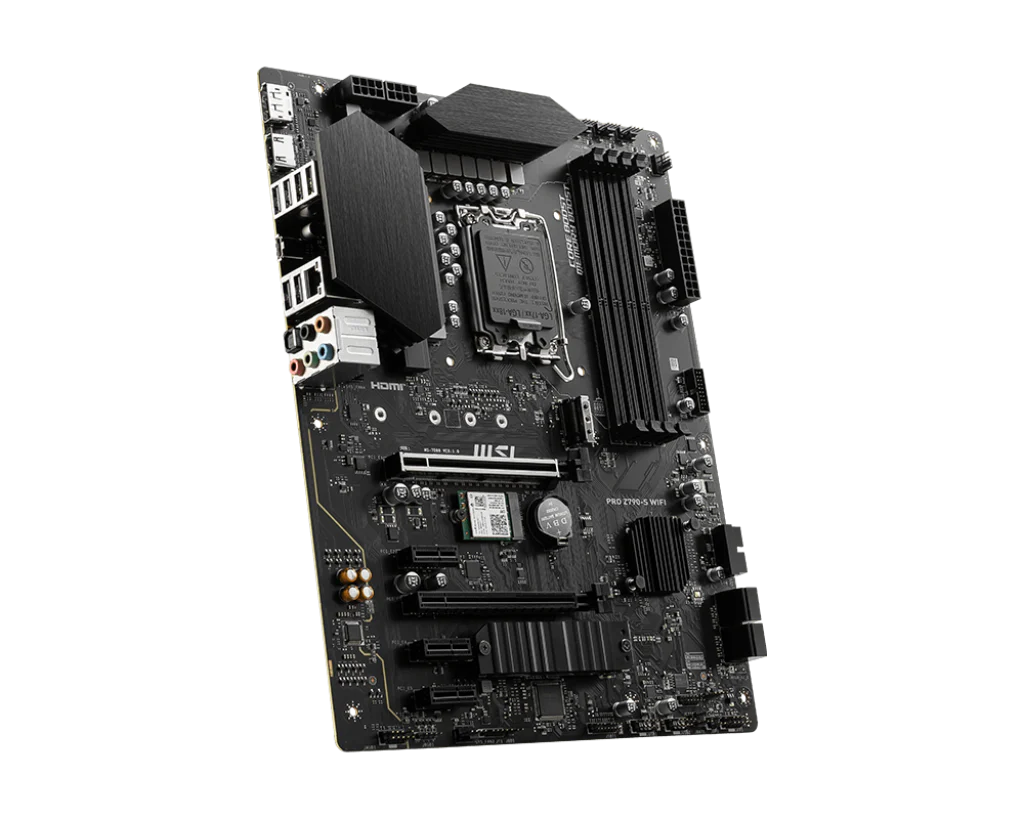

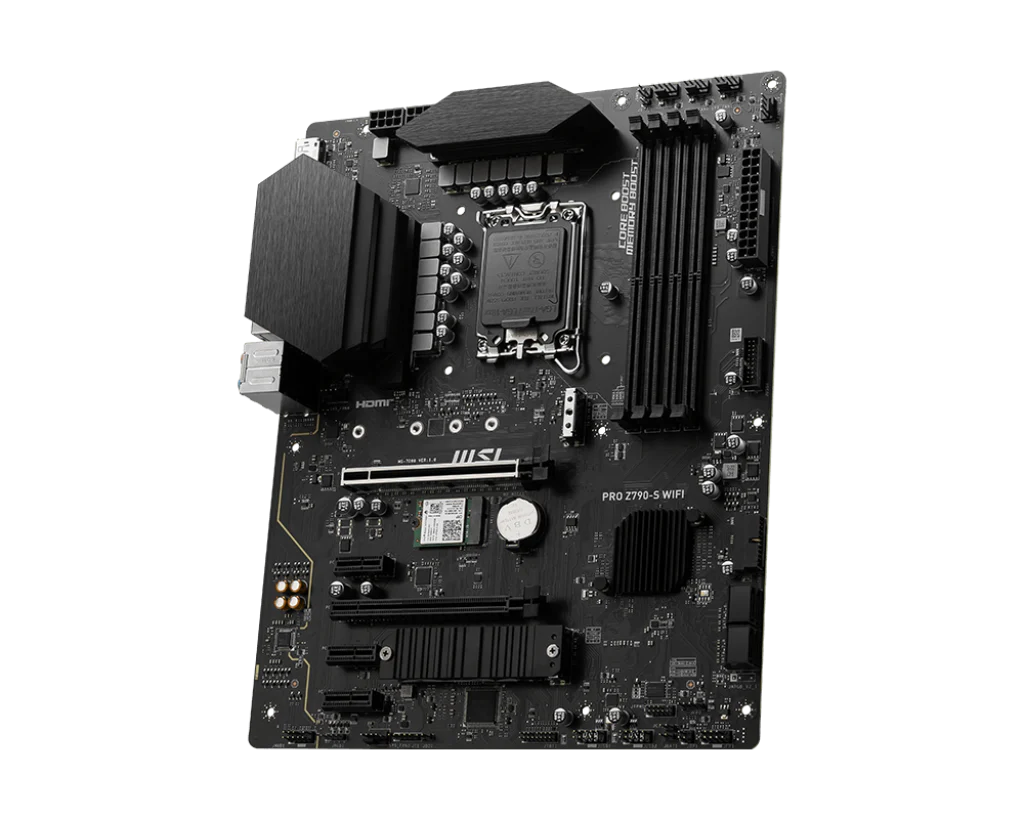

MSI PRO Z790-S WIFI – LGA 1700 ATX Gaming-Mainboard mit DDR5 & PCIe 5.0

Produktbild 1
Produktbild 2
Produktbild 3
Produktbild 4
Produktbild 5

MSI PRO Z790-S WIFI – LGA 1700 ATX Gaming-Mainboard mit DDR5 & PCIe 5.0

PRO Z790-S WIFI

  • Unterstützt Intel® Core™, Pentium® Gold und Celeron® Prozessoren der 12., 13. und 14. Generation für LGA 1700 Sockel
  • Unterstützt DDR5 Arbeitsspeicher, bis zu 6600+(OC) MHz
  • Verbessertes Leistungs Design: 12+1+1 Duet Rail Power System mit P-PAK, zwei 8-Pin CPU power connectors, Core Boost, Memory Boost
  • Premium Kühllösung: Erweiterter Kühlkörper, 7W/mK MOSFET-Wärmeleitpads, zusätzliche Drossel-Wärmeleitpads und M.2 Shield Frozr sind für ein Hochleistungssystem und Non-Stop-Gaming ausgelegt
  • Hochwertige Leiterplatte: 6 Schichten PCB, hergestellt aus 2oz dickem Kupfer und Material auf Server-Niveau
  • Blitzschnelles Gaming: PCIe 5.0-Steckplätze, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2
  • Intel Turbo USB 3.2 Gen 2: Der Intel USB 3.2 Gen2 Controller sorgt für unterbrechungsfreie Verbindungen mit mehr Stabilität und schnellsten USB-Geschwindigkeiten.
  • 2.5G LAN mit Wi-Fi 6E: Hochmoderne Netzwerklösung für den professionellen und multimedialen Einsatz. Bietet eine sichere, stabile und schnelle Netzwerkverbindung
  • AUDIO BOOST 5: Erlebe ein intensives Gaming-Erlebnis mit Sound in Studioqualität.
    • Chipset INTEL Z790
    CPU Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
    LGA 1700
    Memory 4x DDR5, Maximum Memory Capacity 192GB
    Memory Support DDR5 6600+(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
    Max. overclocking frequency:
    • 1DPC 1R Max speed up to 6600+ MHz
    • 1DPC 2R Max speed up to 6400+ MHz
    • 2DPC 1R Max speed up to 6000+ MHz
    • 2DPC 2R Max speed up to 5600+ MHz

    Supports Intel® XMP 3.0 OC
    Supports Dual-Controller Dual-Channel mode
    Supports non-ECC, un-buffered memory
    Onboard Graphics 1x HDMI™
    Support HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz*
    1x DisplayPort
    Support DP 1.4, maximum resolution of 4K 60Hz*
    *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
    Slot 2x PCI-E x16 slot (Qty)
    3x PCI-E x1 slot (Qty)
    PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
    PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
    PCI_E3 Gen PCIe 3.0 supports up to x4 (From Chipset)
    PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
    PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset)
    Storage 2x M.2 (Qty)
    M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices
    M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
    4x SATA 6G (Qty)
    RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
    USB 2x USB 2.0 (Rear)
    4x USB 2.0 (Front)
    4x USB 3.2 Gen1 Type A (Rear)
    4x USB 3.2 Gen1 Type A (Front)
    1x USB 3.2 Gen2x2 Type C (Rear)
    LAN Realtek® RTL8125BG 2.5Gbps LAN
    WIRELESS LAN & BLUETOOTH Intel® Wi-Fi 6E
    The Wireless module is pre-installed in the M.2_WIFI1 (Key-E) slot
    Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
    Supports 802.11 a/ b/ g/ n/ ac/ ax

    Supports Bluetooth® 5.3, FIPS, FISMA

    * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
    ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
    Audio Realtek® ALC897 Codec
    7.1-Channel High Definition Audio
    Supports S/PDIF output
    Internal IO 1x Power Connector(ATX_PWR)
    2x Power Connector(CPU_PWR)
    1x CPU Fan
    1x Pump Fan
    4x System Fan
    2x Front Panel (JFP)
    1x Chassis Intrusion (JCI)
    1x Front Audio (JAUD)
    1x TBT connector (JTBT, supports RTD3)
    1x RGB LED connector(JRGB)
    1x TPM pin header(Support TPM 2.0)
    4x USB 2.0 ports
    4x USB 3.2 Gen1 Type A ports
    BACK PANEL PORTS
    1. DisplayPort
    2. HDMI™
    3. USB 2.0
    4. USB 3.2 Gen 2x2 20Gbps (Type-C)
    5. 2.5G LAN
    6. Audio Connectors
    7. USB 3.2 Gen 1 5Gbps (Type-A)
    8. USB 3.2 Gen 1 5Gbps (Type-A)
    9. S/PDIF-OUT
    OPERATING SYSTEM Support for Windows® 11 64-bit, Windows® 10 64-bit
    PCB Info ATX
    243.84mmx304.8mm
    BOX CONTENT
    $209.25
    MSI PRO Z790-S WIFI – LGA 1700 ATX Gaming-Mainboard mit DDR5 & PCIe 5.0—
    $209.25

    Produktinformationen

    Versand & Rückgabe

    Description

    PRO Z790-S WIFI

    • Unterstützt Intel® Core™, Pentium® Gold und Celeron® Prozessoren der 12., 13. und 14. Generation für LGA 1700 Sockel
    • Unterstützt DDR5 Arbeitsspeicher, bis zu 6600+(OC) MHz
    • Verbessertes Leistungs Design: 12+1+1 Duet Rail Power System mit P-PAK, zwei 8-Pin CPU power connectors, Core Boost, Memory Boost
    • Premium Kühllösung: Erweiterter Kühlkörper, 7W/mK MOSFET-Wärmeleitpads, zusätzliche Drossel-Wärmeleitpads und M.2 Shield Frozr sind für ein Hochleistungssystem und Non-Stop-Gaming ausgelegt
    • Hochwertige Leiterplatte: 6 Schichten PCB, hergestellt aus 2oz dickem Kupfer und Material auf Server-Niveau
    • Blitzschnelles Gaming: PCIe 5.0-Steckplätze, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2
    • Intel Turbo USB 3.2 Gen 2: Der Intel USB 3.2 Gen2 Controller sorgt für unterbrechungsfreie Verbindungen mit mehr Stabilität und schnellsten USB-Geschwindigkeiten.
    • 2.5G LAN mit Wi-Fi 6E: Hochmoderne Netzwerklösung für den professionellen und multimedialen Einsatz. Bietet eine sichere, stabile und schnelle Netzwerkverbindung
    • AUDIO BOOST 5: Erlebe ein intensives Gaming-Erlebnis mit Sound in Studioqualität.
    • Chipset INTEL Z790
    CPU Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
    LGA 1700
    Memory 4x DDR5, Maximum Memory Capacity 192GB
    Memory Support DDR5 6600+(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
    Max. overclocking frequency:
    • 1DPC 1R Max speed up to 6600+ MHz
    • 1DPC 2R Max speed up to 6400+ MHz
    • 2DPC 1R Max speed up to 6000+ MHz
    • 2DPC 2R Max speed up to 5600+ MHz

    Supports Intel® XMP 3.0 OC
    Supports Dual-Controller Dual-Channel mode
    Supports non-ECC, un-buffered memory
    Onboard Graphics 1x HDMI™
    Support HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz*
    1x DisplayPort
    Support DP 1.4, maximum resolution of 4K 60Hz*
    *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
    Slot 2x PCI-E x16 slot (Qty)
    3x PCI-E x1 slot (Qty)
    PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
    PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
    PCI_E3 Gen PCIe 3.0 supports up to x4 (From Chipset)
    PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
    PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset)
    Storage 2x M.2 (Qty)
    M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices
    M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
    4x SATA 6G (Qty)
    RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
    USB 2x USB 2.0 (Rear)
    4x USB 2.0 (Front)
    4x USB 3.2 Gen1 Type A (Rear)
    4x USB 3.2 Gen1 Type A (Front)
    1x USB 3.2 Gen2x2 Type C (Rear)
    LAN Realtek® RTL8125BG 2.5Gbps LAN
    WIRELESS LAN & BLUETOOTH Intel® Wi-Fi 6E
    The Wireless module is pre-installed in the M.2_WIFI1 (Key-E) slot
    Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
    Supports 802.11 a/ b/ g/ n/ ac/ ax

    Supports Bluetooth® 5.3, FIPS, FISMA

    * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
    ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
    Audio Realtek® ALC897 Codec
    7.1-Channel High Definition Audio
    Supports S/PDIF output
    Internal IO 1x Power Connector(ATX_PWR)
    2x Power Connector(CPU_PWR)
    1x CPU Fan
    1x Pump Fan
    4x System Fan
    2x Front Panel (JFP)
    1x Chassis Intrusion (JCI)
    1x Front Audio (JAUD)
    1x TBT connector (JTBT, supports RTD3)
    1x RGB LED connector(JRGB)
    1x TPM pin header(Support TPM 2.0)
    4x USB 2.0 ports
    4x USB 3.2 Gen1 Type A ports
    BACK PANEL PORTS
    1. DisplayPort
    2. HDMI™
    3. USB 2.0
    4. USB 3.2 Gen 2x2 20Gbps (Type-C)
    5. 2.5G LAN
    6. Audio Connectors
    7. USB 3.2 Gen 1 5Gbps (Type-A)
    8. USB 3.2 Gen 1 5Gbps (Type-A)
    9. S/PDIF-OUT
    OPERATING SYSTEM Support for Windows® 11 64-bit, Windows® 10 64-bit
    PCB Info ATX
    243.84mmx304.8mm
    BOX CONTENT
